Cuplock Scaffolding

Leading Supplier of Cuplock Scaffolding System



Cuplock Scaffolding System is the most commonly used scaffolding system in the world. The official name of this scaffolding system is Cuplok, but most people know it as Cuplock. EK Cuplock Scaffolding is used for support and access structures in construction industry, offshore construction, industrial maintenance, and ship building. And all Cuplock System parts are designed and manufactured to meet all scaffolding industry standard.

Cuplock System has quick locking and fastening devices that simplify the construction process and make it safer for workers to participate in construction. All of these are good ways to optimize the work efficiency of construction projects and improve the construction safety index.

For This Page：

Cuplock Scaffolding Video

There are generally two methods for welding cuplock standards: manual welding and machine welding.
Manual welding refers to manual arc welding. First, spot welding is used to fix the bottom cups and located pins to the cuplock vertical tube, then full welding is performed. The welding direction is from bottom to top, ensuring the components are firmly welded to the cuplock vertical tube and avoiding common weld bead or porosity defects found in upright welding.
Machine welding includes CO₂ gas shielded welding and resistance welding. Gas shielded welding has a large penetration depth, less spatter, and a high degree of automation, making it suitable for mass production. Most scaffolding manufacturers use CO₂ gas shielded welding. Resistance welding equipment has a higher investment cost, but it has a smaller heat-affected zone on the base material, and the joint strength can reach over 95% of the base material's strength. It is typically used for cuplock vertical tube extensions.

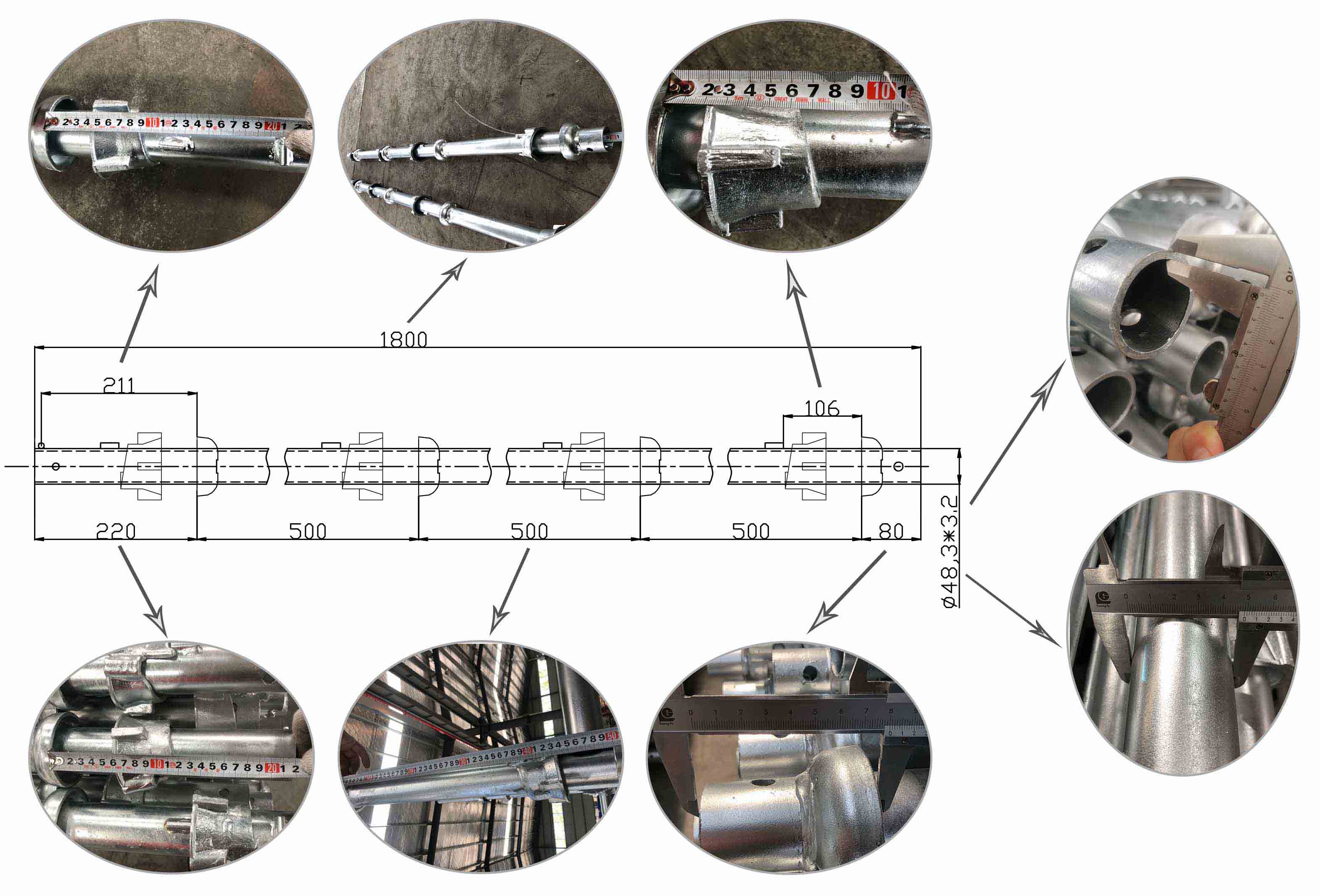

Key Points and Quality Control for Cuplock Stansards Welding
1. The welding surfaces of the cuplock vertical tube and the cuplock need to be ground smooth to avoid impurities such as oil and moisture affecting the weld quality.
2. The weld should be free of defects such as cracks and lack of fusion, with an undercut depth ≤ 0.5mm (as specified in JGJ 166-2016).
3. For high-strength steels such as Q345, post-weld treatment at 250℃ for 2 hours is required to reduce the risk of hydrogen-induced cracking.


EK Cuplock Scaffolding vertical welding is mainly divided into three steps:

1. Adjust the tooling equipment distance and determine the bottom cups interval. Use spot welding to fix the bottom cups and located pins to the vertical tube.

2. Located pins full weld, that make sure the located pins are firmly fixed to the vertical tube.

3. Bottom cups full weld, that to ensure the stability of the bottom cups and ensure the safety index in the construction and use.

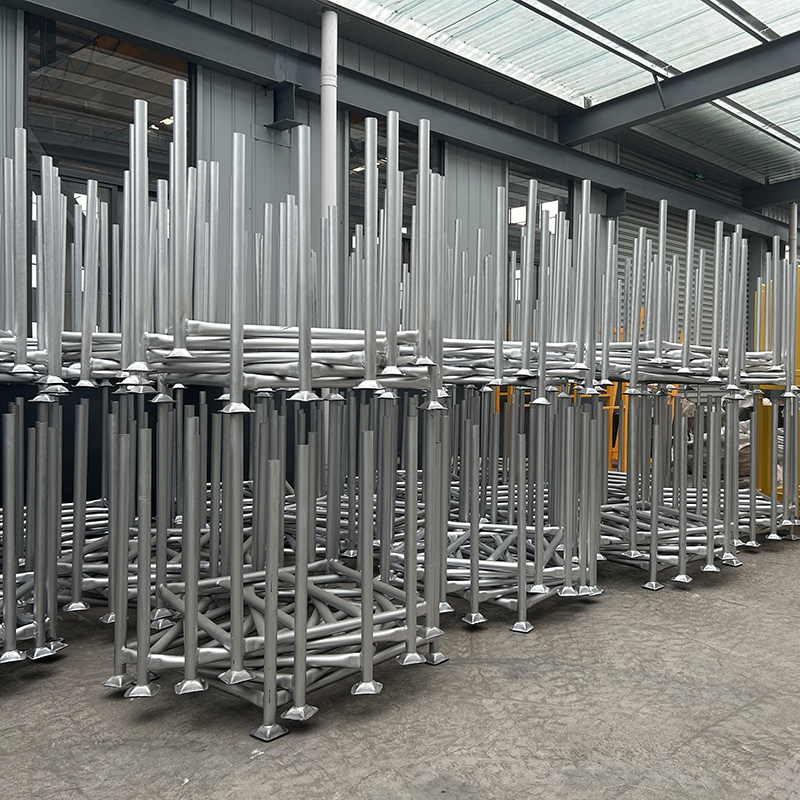

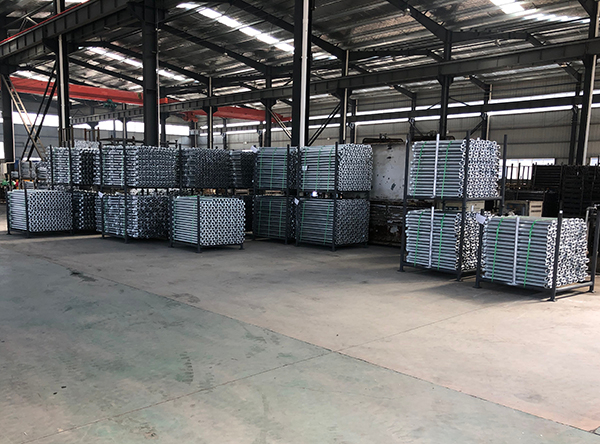

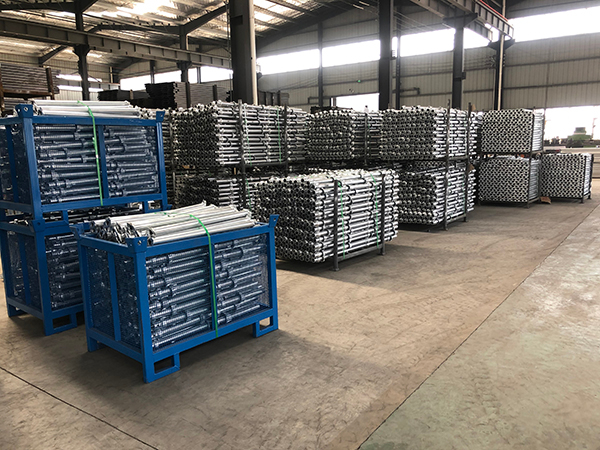

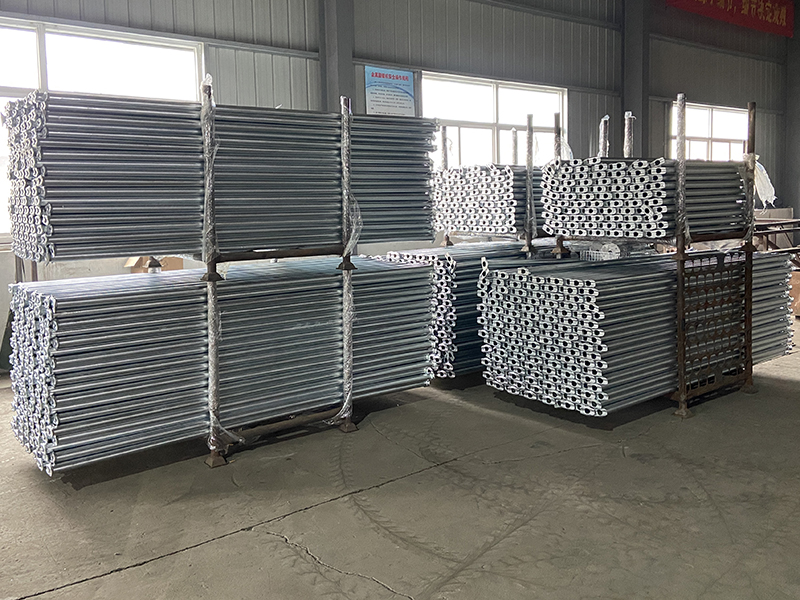

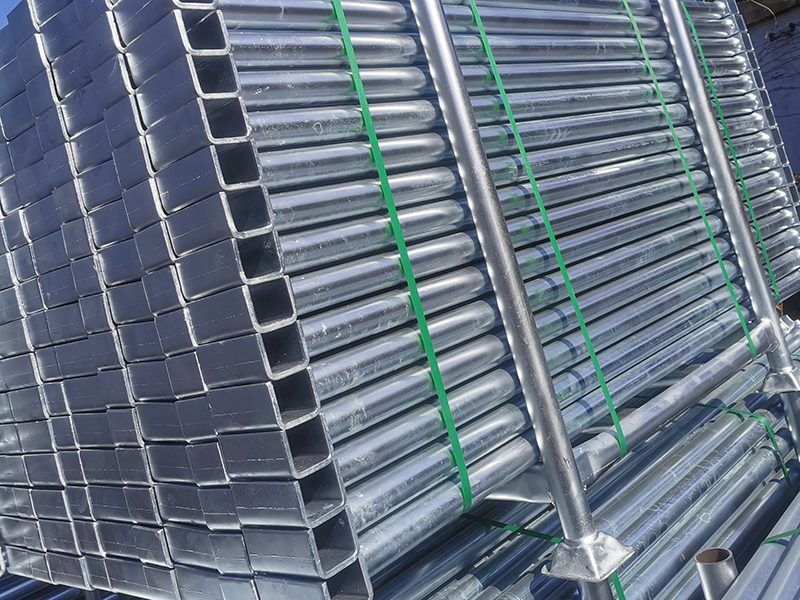

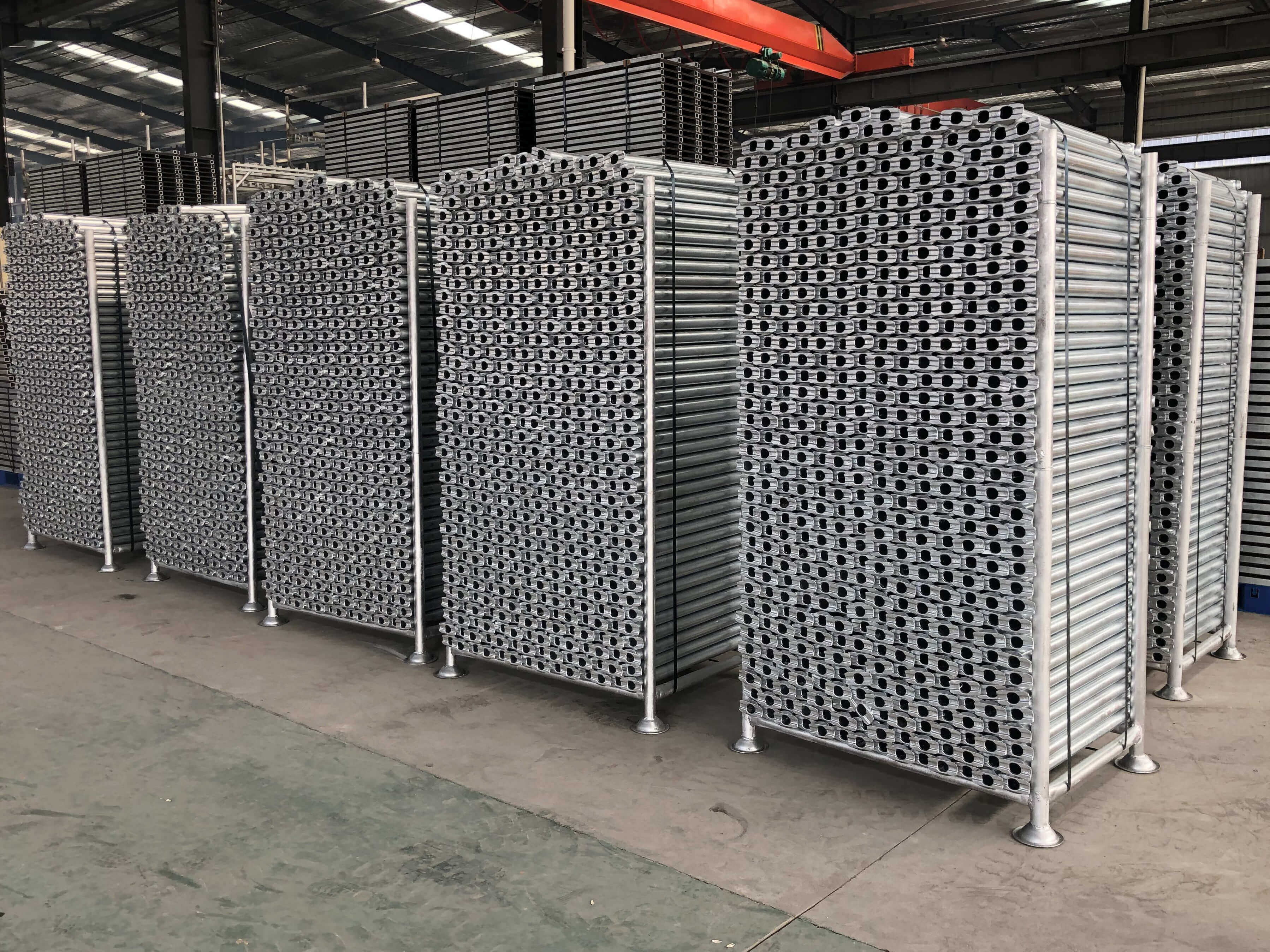

Bulk Cuplock Scaffolding System

Quando la produzione e l'imballaggio di un batch di prodotti di sistema di impalcature Cuplock richiesti dal cliente sono completati, scattiamo foto e conserveremo i file e li invieremo al cliente, informeremo il tempo di caricamento di questo lotto di scaffold Cuplock e farà sapere al cliente il programma di spedizione.

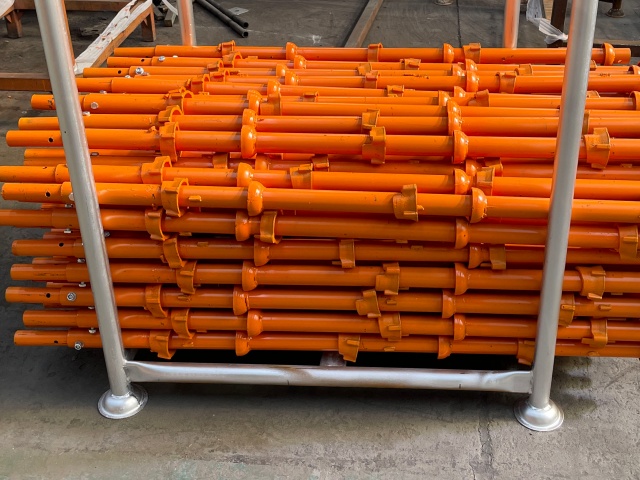

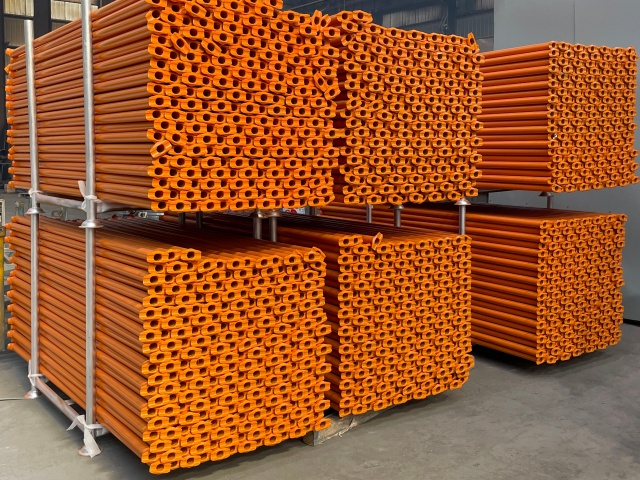

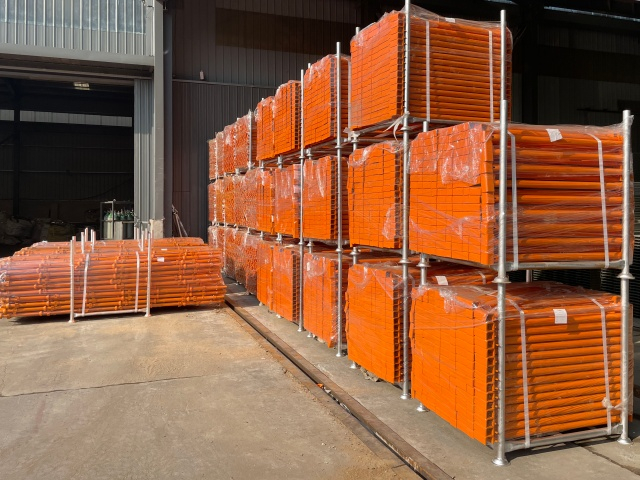

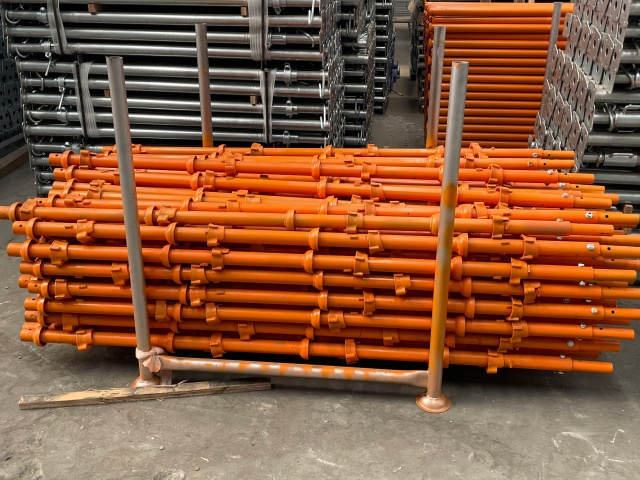

Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System

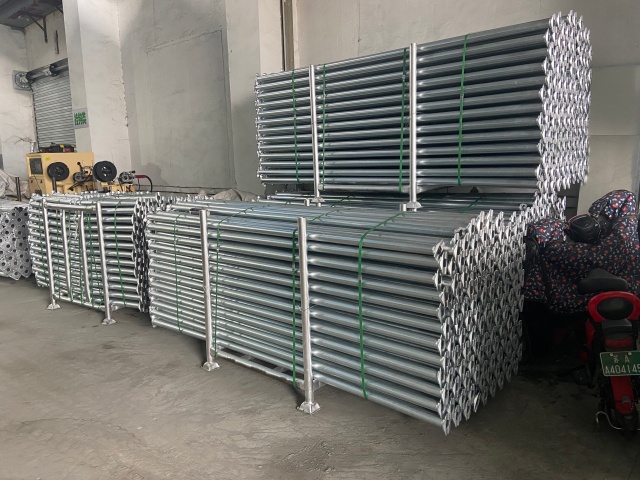

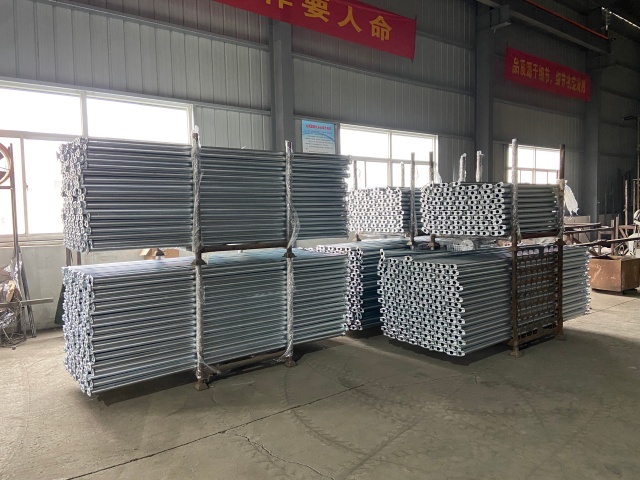

Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System
Bulk Cuplock Scaffolding System
Bulk Cuplock System

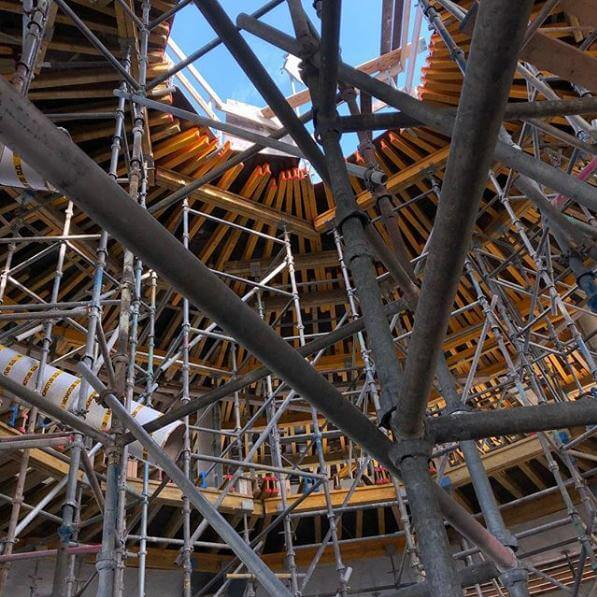

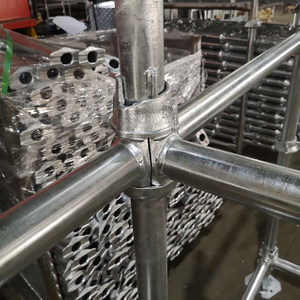

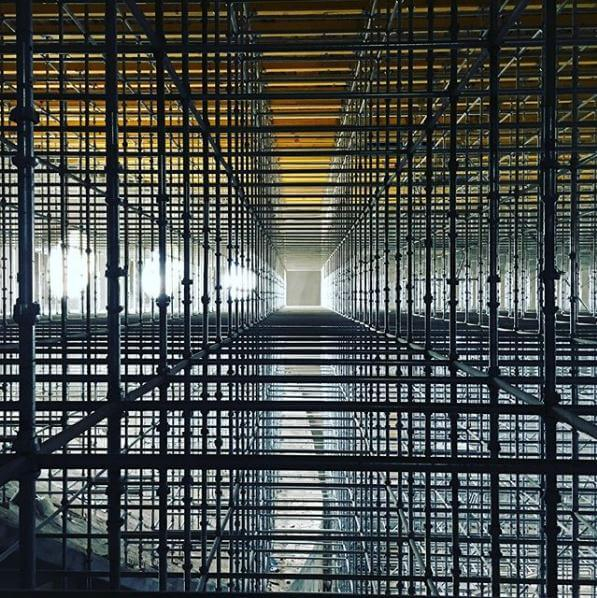

What is cuplock scaffolding

Cuplock Scaffolding, is a scaffold system that uses the "Cup" and "Blade" to lock the vertical/standard and horizontal/ledger together, and lock the blades by twisting the cup. This Cuplock Scaffold System uses no nut, bolt or wedge. Cuplock’s Scaffolding System node-point is revolutionary, and makes it faster and easier than any other scaffolding system.

Why Choose Cuplock?

Cuplock Scaffolding System joint structure is reasonable, simple production process, easy operation, wide range of use, compared with traditional scaffolding, Cuplock System has the following remarkable features:
Cuplock Features Details
Easy to Stand No nut and bolt or wedge, just lock the blade into cup at
each node on the standard.
Sample Fast and simple to erect with only four component
fastenings.
Light Weight Manufactured using 3.2mm thickness high grade steel,
Cuplock System is 20% lighter than standard
4mm thickness scaffolding tube.
Economical Cuplock System with only three maincomponents.
Fast 30%-50% faster than traditional scaffolding.
Durable Hot-Dip-Galvanized provides a low maintenance, long life.

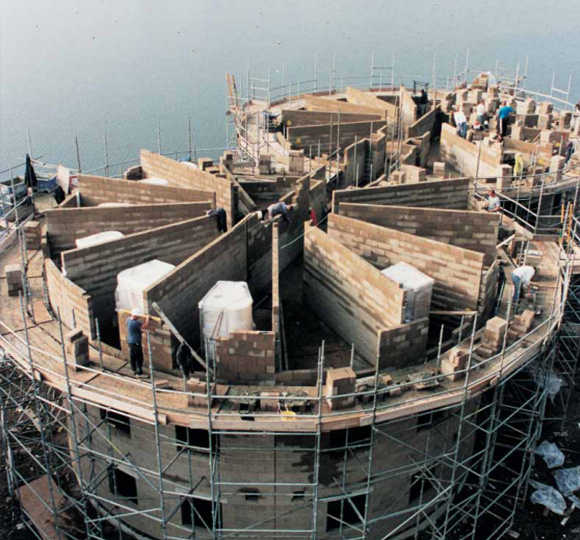

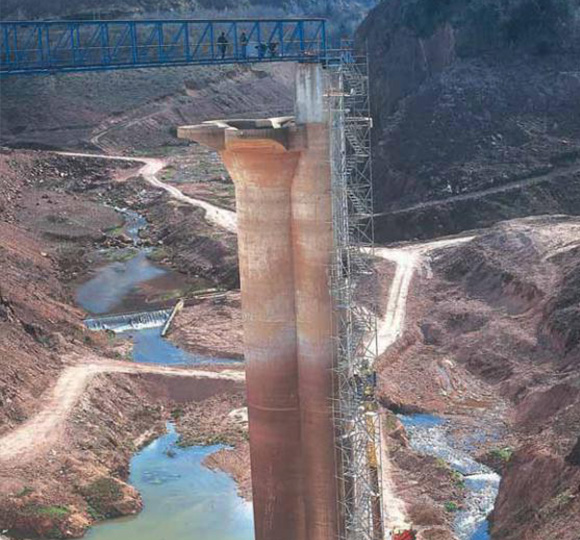

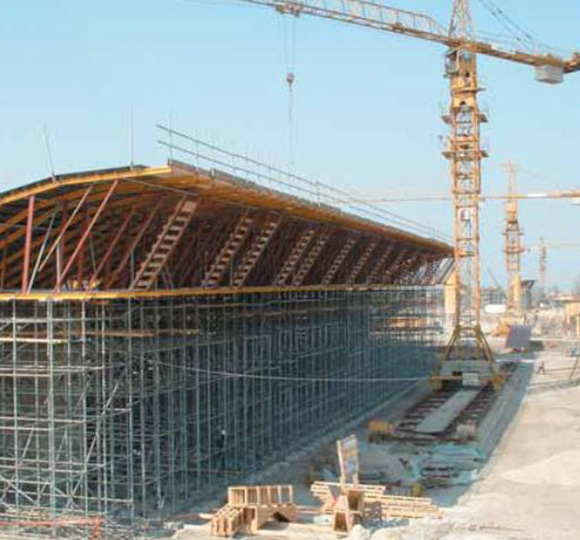

Versatile With 500mm cup intervals on the verticals, Cuplock
Scaffolding System is extremely versatile Facade, Shoring
Structures, Circular, Birdcages, Staircases, Mobile Towers
and etc.
Flexible 0.6m to 3.0m bays using boards or battens.

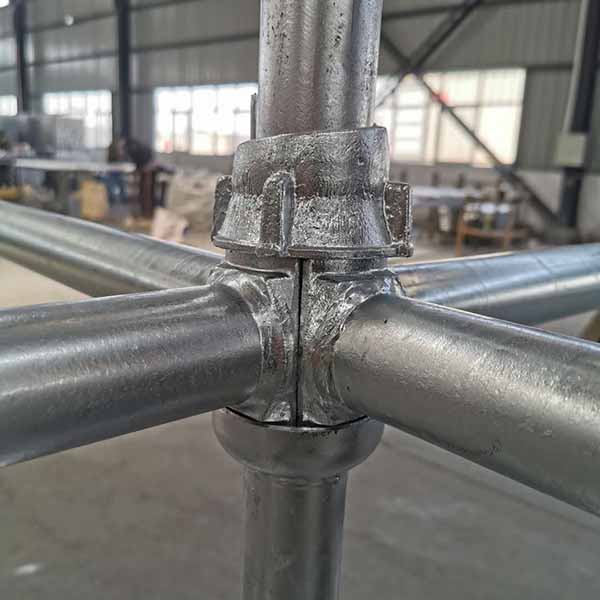

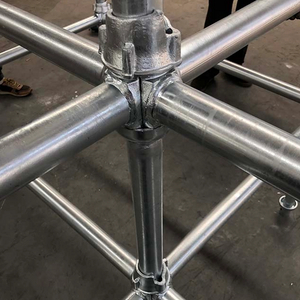

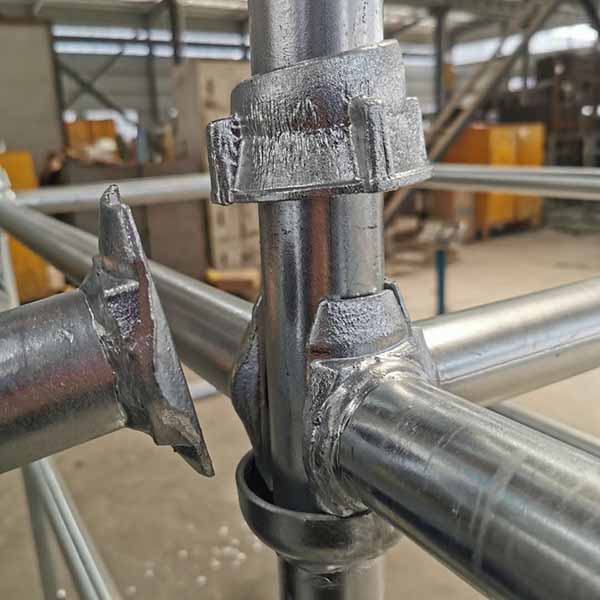

Cup-Locking Procedure:

Here below are pictures showing how to install the Cuplock System :

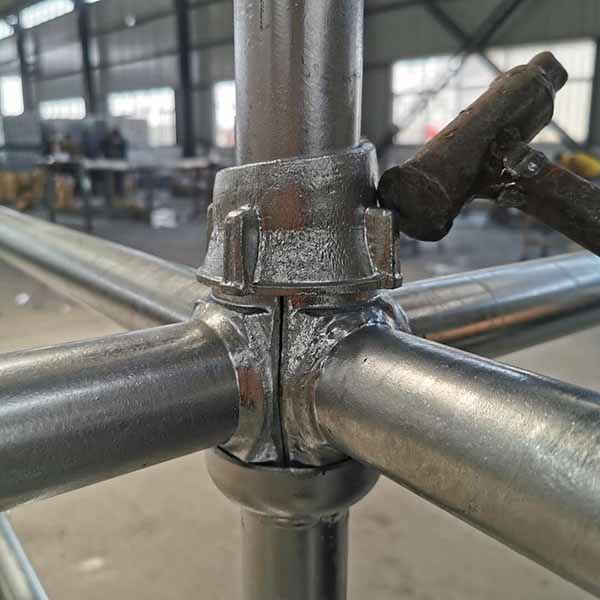

Cuplock Scaffolding Installation Steps 1、Locate the ledger blade into the bottom cup
Cuplock Scaffolding Installation Steps 2、Slide the top cup down the standard and rotate
Cuplock Scaffolding Installation Steps 3、Tighten with a hammer blow

Cuplock Scaffolding Installation Steps 4、A cuplock’s node-point completed


Cuplock Scaffolding System Parts

EK Scaffolding provides a high quality range of Cuplock Scaffolding System to customers with needs. The entire range of Cuplock System is perfectly manufactured using high grade raw materials, in compliance with the international quality standards. Moreover, EK Scaffolding manufacturer can provide a variety of specifications for these products, in order to meet different requirements of customers. Our product range includes Cuplock Vertical/Standard, Cuplock Ledger/Horizontal, Cuplock Transom, Cuplock Hop-Up Bracket and Cuplock accessories etc.

Elenchi delle parti dell"impalcatura Cuplock

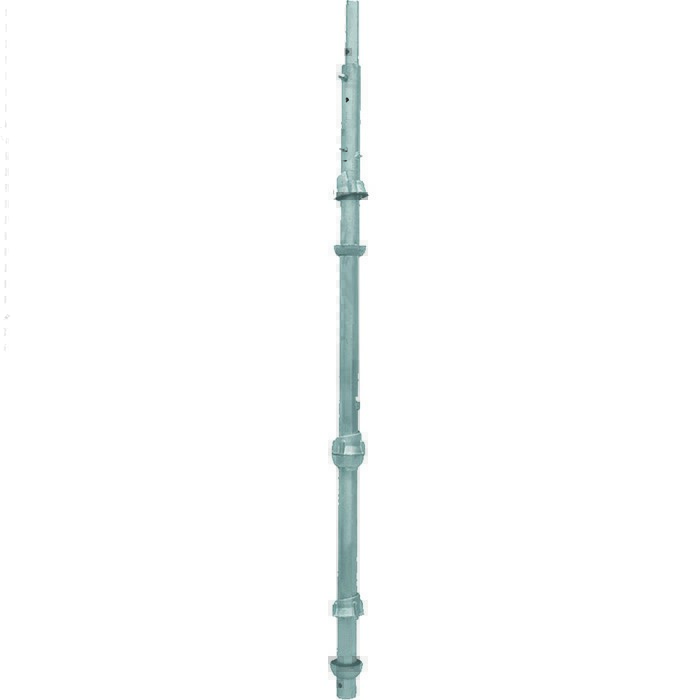

Standard Cuplock
Standard Cuplock
Gli standard Cuplock sono parti verticali del sistema Cuplock. OD48,3 mm con coppe superiori e coppe inferiori. Fare clic su Visualizza dettagli per le dimensioni e le specifiche standard del cuplock.

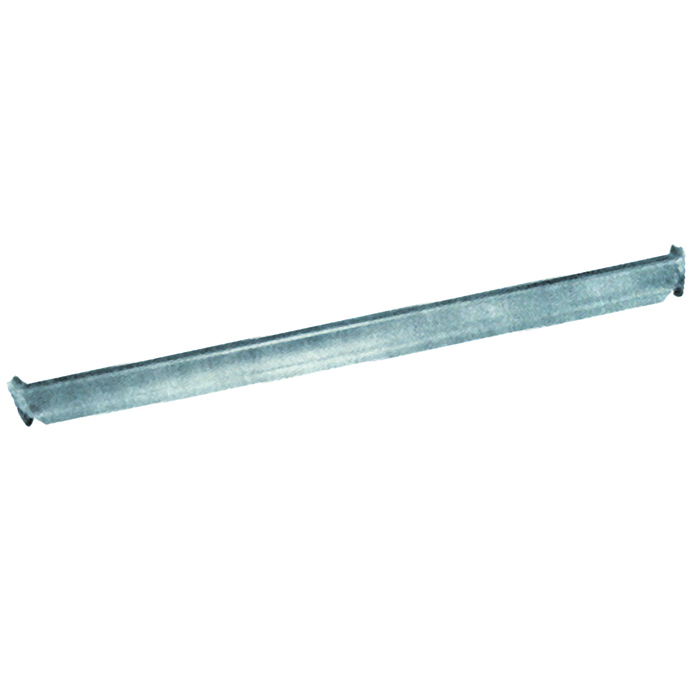

Cuplock rinforza lo specchio di poppa
Cuplock rinforza lo specchio di poppa
Le traverse omega dell'impalcatura Cuplock supportano i listelli dell'impalcatura per formare la pedana e la piattaforma di lavoro. Nel sistema cuplock sono presenti traverse omega a una tavola, due tavole e tre tavole.

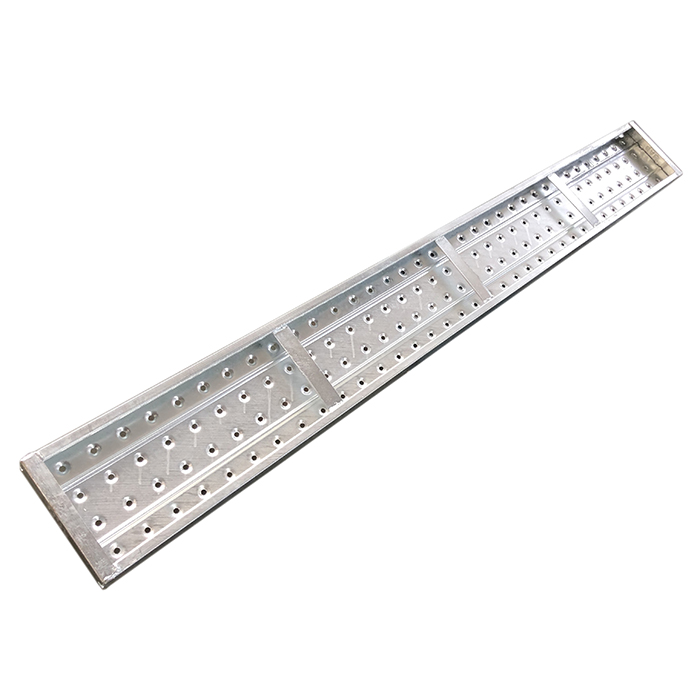

Scaffolding Plank
Scaffolding Plank
238x57mm Cuplock Omega Battens with Plain Ends Work with Cuplock Scaffold Omega Transom.

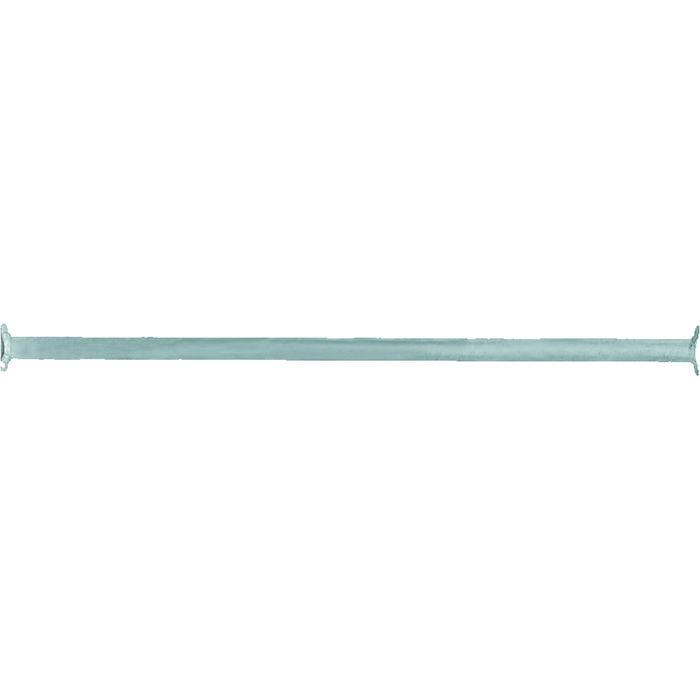

Ledger Cuplock
Ledger Cuplock
I registri Cuplock sono parti orizzontali dell'impalcatura del sistema Cuplock. È realizzato con un tubo per impalcatura con diametro esterno di 48,3 mm e lame a registro. Fare clic su Visualizza dettagli per le dimensioni e le specifiche del registro cuplock.

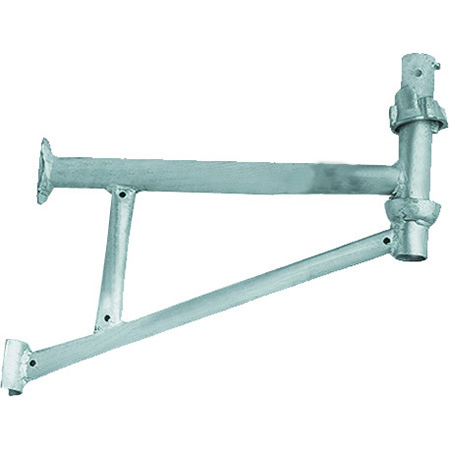

Cuplock Tube Bracket
Cuplock Tube Bracket
Cuplock scaffold system three board brackets hold three pieces of cuplock planks in width. It is used for hanging and suspended scaffold construction.

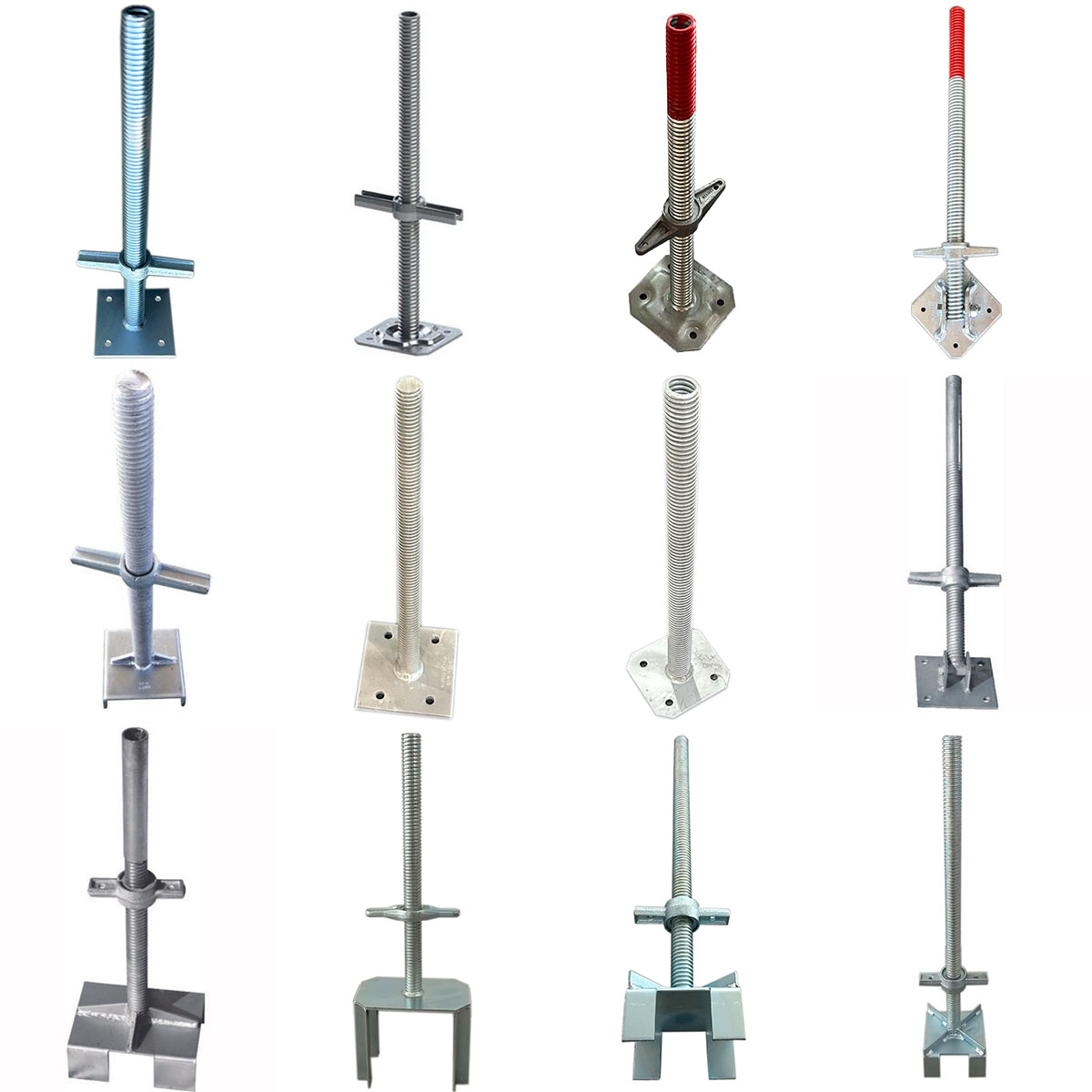

Base Jack
Base Jack
Cuplock scaffolding leveling parts as feet of the cuplock tower. OD38mm hollow screw jack stem or OD35mm solid base jack for your cuplock system.

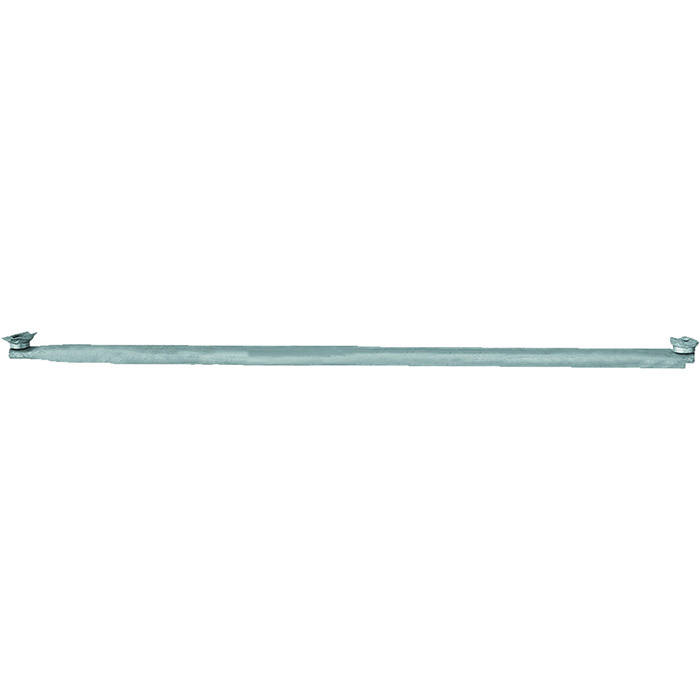

Tutore diagonale Cuplock
Tutore diagonale Cuplock
Bretelle diagonali Cuplock con 2 lame girevoli. Le lame girevoli sono inserite nelle coppe verticali cuplock in costruzione.

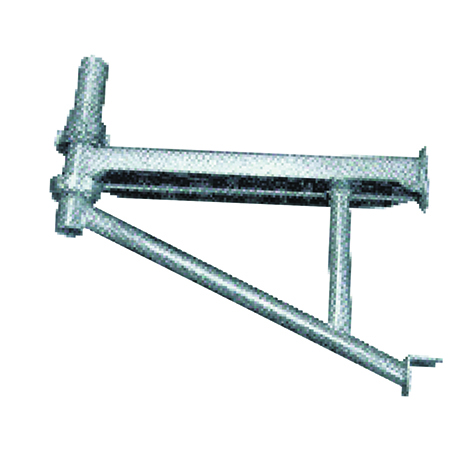

Cuplock Angle Bracket
Cuplock Angle Bracket
Cuplock Omega Hop Up Bracket are side bracket used to support scaffold omega battens and boards in cuplock system with T section.

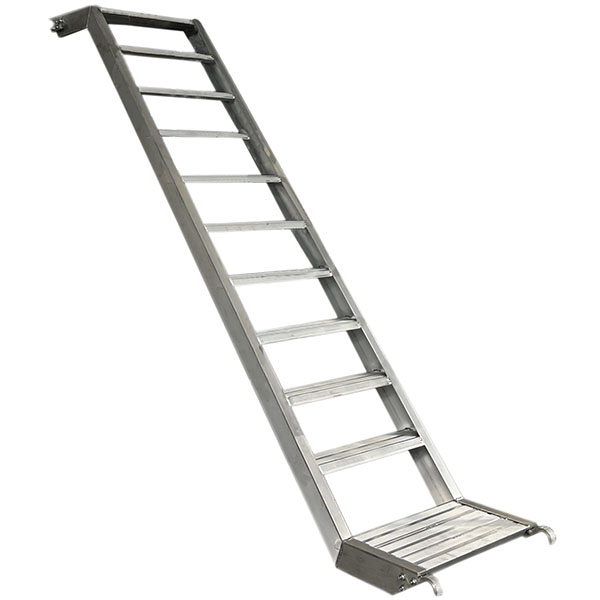

Stair ladder
Stair ladder
Cuplock scaffolding lightweight aluminum stairs for access construction and building with hooks.

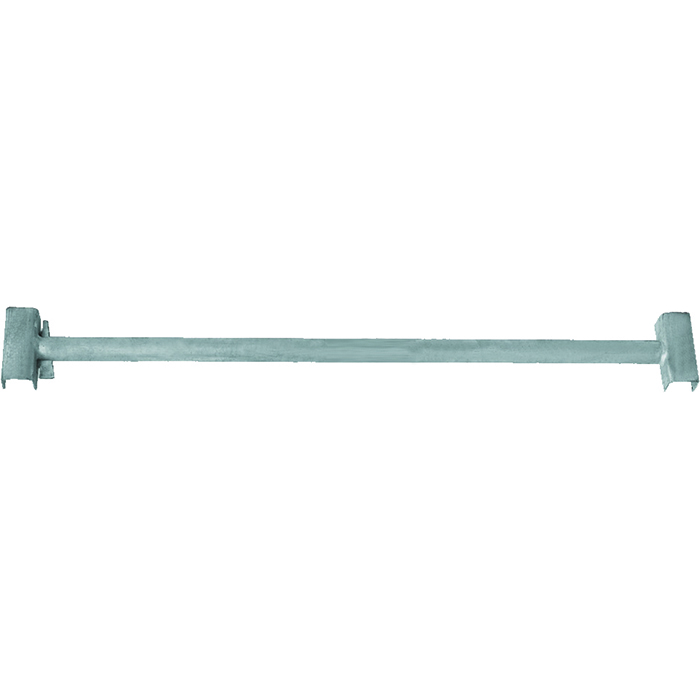

Cuplock Trans Sola
Cuplock Trans Sola
I traversi intermedi del sistema di impalcatura Cuplock vengono utilizzati per supportare le assi dell'impalcatura al centro dei registri Cuplock.

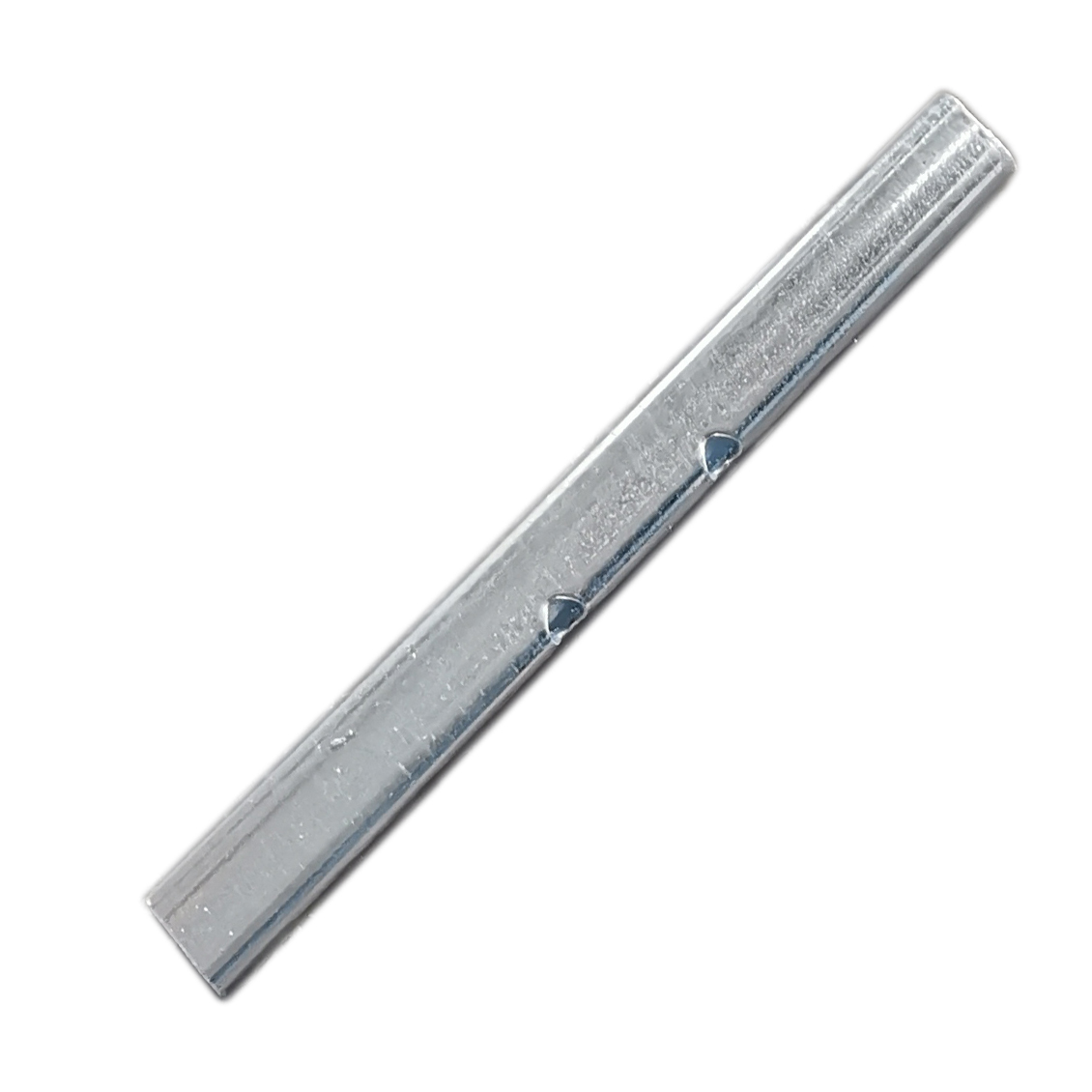

Joint Coupler
Joint Coupler
Extended spigot adaptor connects cuplock cantilever frames, brackets, and cuplock standard in handing and suspended cuplock system construction.

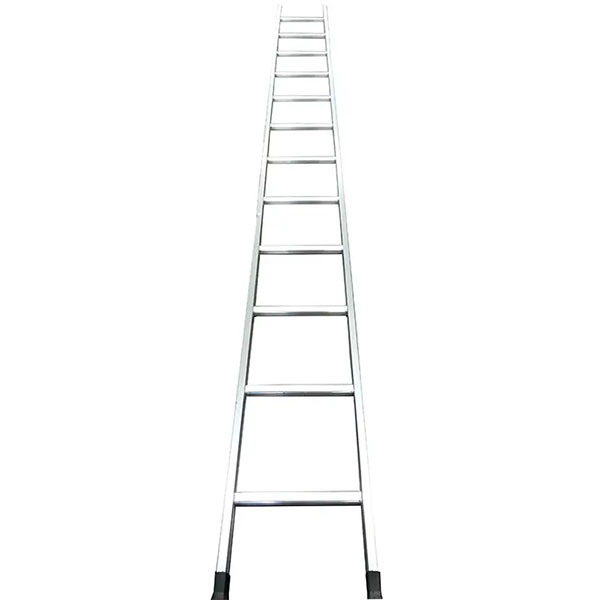

straight ladder
straight ladder
Cuplock scaffold steel ladders offer an access system. It is with a socket in manufacturing. The cuplock ladders are fixed by a ladder bracket in construction.
Core Cuplock Systems Parts manufactured by EK scaffolding are as follow:

Cuplock Scaffolding spigoted standard/vertical

Spigoted Standard / Vertical



These cuplock standards are used in conjunction with integral spigots, 150mm long, are provided at the top of each for making vertical connections. The spigots are drilled to receive locking pins, when it is necessary to resist minor tensile forces between standard members.



Cuplock Spigoted Standard / Vertical

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLS001 Cuplock Spigot Standard 0.5 M 1’8" 3.40 KG 7.50 LBS
EK-CLS002 Cuplock Spigot Standard 1.0 M 3’3" 6.10 KG 13.45 LBS
EK-CLS003 Cuplock Spigot Standard 1.5 M 4’11" 8.72 KG 19.22 LBS
EK-CLS004 Cuplock Spigot Standard 2.0 M 6’6" 11.34 KG 25.00 LBS
EK-CLS005 Cuplock Spigot Standard 2.5 M 8’2" 13.95 KG 30.75 LBS
EK-CLS006 Cuplock Spigot Standard 3.0 M 9’10" 16.57 KG 36.53 LBS
Specifications can be customized according to requirements.

Spigotless Standard / Vertical


These standards have no spigot, this combination of components will cater for all extended soffit heights, but for lower heights just spigotless design allows the insertion of jacks with various head components to meet the requirements of differing support applications such as aluminum beam support or decking systems.


Cuplock Spigotless Standard / Vertical

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLS007 Cuplock Spigotless Standard 0.8 M 2’7" 4.56 KG 10.05 LBS
EK-CLS008 Cuplock Spigotless Standard 1.3 M 4’3" 7.18 KG 15.83 LBS
EK-CLS009 Cuplock Spigotless Standard 1.8 M 6’ 9.79 KG 21.58 LBS
EK-CLS010 Cuplock Spigotless Standard 2.3 M 7’6" 12.41 KG 27.36 LBS

EK-CLS011

Cuplock Spigotless Standard

3.0 M

9’9’’

15.70 KG

34.61 LBS
Specifications can be customized according to requirements.

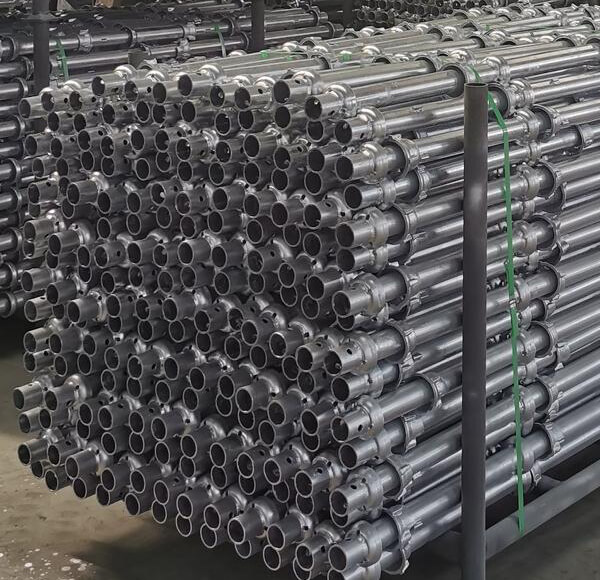

cuplock scaffolding spigotless standard/vertical

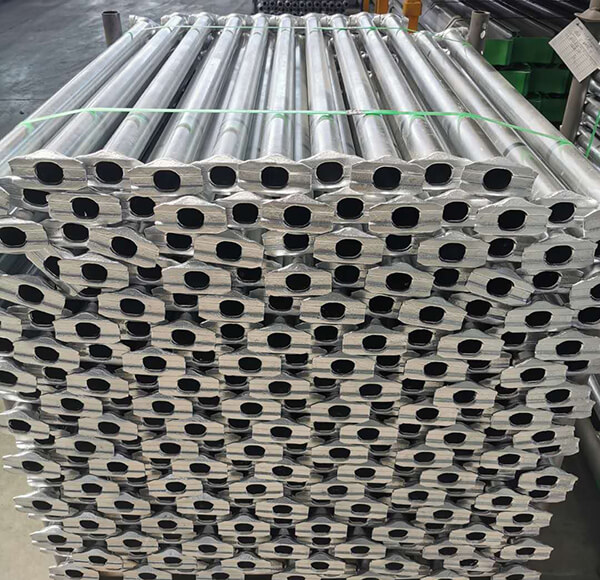

cuplock ledger/horizontal

Cuplock Ledger / Horizontal


Cuplock Ledgers are manufactured from 48.3*3.0mm scaffolding tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid specification for scaffolding or formwork system.


Cuplock Ledger / Horizontal

Steel Tube: 48.3*3.0mm
Code Item Length Weight
EK-CLL001

Cuplock Ledger

 0.6 M 2’ 2.35 KG

5.18 LBS
EK-CLL002

Cuplock Ledger

 1.0 M 3’3" 3.75 KG

8.27 LBS
EK-CLL003

Cuplock Ledger

 1.5 M 4’11" 5.47 KG

12.06 LBS
EK-CLL004

Cuplock Ledger

 2.0 M 6’6" 7.21 KG 15.90 LBS
EK-CLL005

Cuplock Ledger

 2.5 M 8’2" 8.93 KG 19.69 LBS
Specifications can be customized according to requirements.

Cuplock Transom



Cuplock transoms are manufactured from 48.3*3.2mm scaffolding tube and designed to provide intermediate support for standard scaffold walk boards by spanning between the inner and outer ledgers.

Cuplock Transom

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLT001

Cuplock Transom

 0.56 M 1’10’’ 3.79 KG 8.36 LBS
EK-CLT002

Cuplock Transom

 0.80 M 2’7" 4.67 KG 10.30 LBS
EK-CLT003

Cuplock Transom

 1.30 M 4’3" 6.50 KG 14.33 LBS
EK-CLT004

Cuplock Transom

 1.80 M 6’ 8.33 KG 18.36 LBS
Specifications can be customized according to requirements.

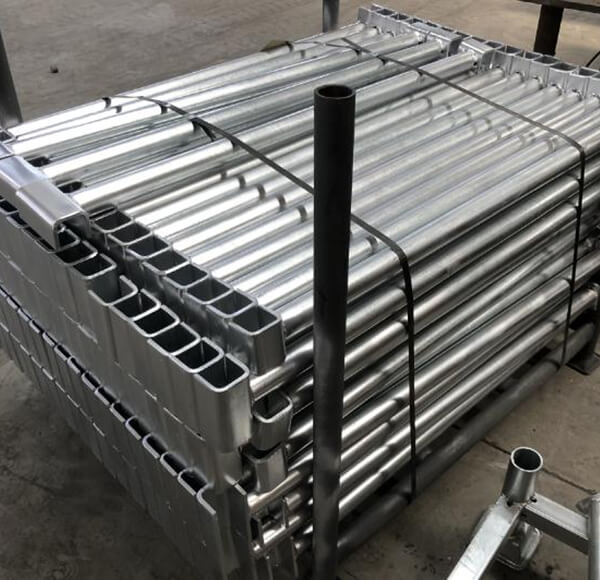

cuplock transom

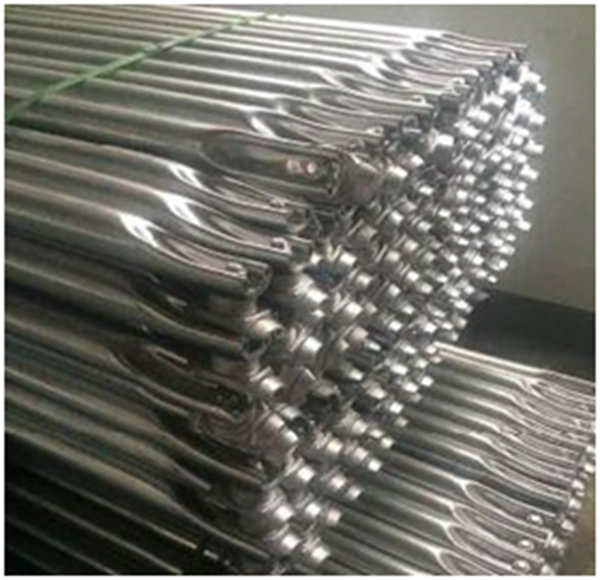

Cuplock Brace/Diagonale

Cuplock Brace / Diagonal


Cuplock braces are manufactured from 48.3*3.2mm scaffolding tube and each brace has two swivel blade ends. Their function is to provide transverse and longitudinal bracing to scaffold structures.


Cuplock Brace / Diagonal

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLB001

Cuplock Brace

 1.5*1.8M 4’11’’*6’ 8.70 KG 19.18 LBS
EK-CLB002

Cuplock Brace

 1.8*2.0M 6’*6’6’’ 9.80 KG 21.60LBS
EK-CLB003

Cuplock Brace

 1.5*2.5M 4’11"*8’2’’ 10.70 KG 23.59 LBS
EK-CLB004

Cuplock Brace

 2.0*2.5M 6’6"*8’2’’ 11.50 KG 25.35 LBS
EK-CLB005

Cuplock Brace

 2.0*3.0M 6’6’’*9’10’’ 13.00 KG 28.66 LBS
Specifications can be customized according to requirements.

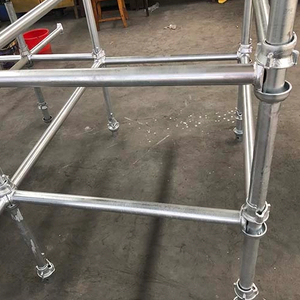

Tutti i prodotti Cuplock

Sistema di impalcature Cuplock
Sistema di impalcature Cuplock
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
1000 mm hdg cuplock impalcatura verticale
1000 mm hdg cuplock impalcatura verticale
Specifiche: 48.3*3,2 mm o come te
Trattamento superficiale: rivestimento nero, a caldo-galvanizzato, dipinto
Materiale: acciaio al carbonio Q235
Contrassegna: BS1139 / EN74 o come te
Standrad: standard BS
0
0
Condime zincato a caldo o orizzontale per il sistema di impalcature Cuplock
Condime zincato a caldo o orizzontale per il sistema di impalcature Cuplock
Ledger HDG Ledger Cuplock Sistema di impalcatura 1) Materiale: Q235 2) Dimensione del tubo: 48.3x3,0mm 3) Lunghezza: 900 mm (dimensione disponibile 0,6-2,5 m) 4) Utilizzo: Sistema Cuplock Tracing Ledger 4) Peso: 3,5kg 5) Elaborazione: calda calda galvanizzata
0
0
1,2 m HDG CUPLOCK Sistema di specchio di poppa
1,2 m HDG CUPLOCK Sistema di specchio di poppa
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
Sistema di impalcature di pipli di dipinga libro mastro orizzontale
Sistema di impalcature di pipli di dipinga libro mastro orizzontale
0
0
Dipingendo il sistema di impalcature di cuplock trasversale
Dipingendo il sistema di impalcature di cuplock trasversale
0
0
Dipingendo il sistema di impalcature di cuplock standard verticale
Dipingendo il sistema di impalcature di cuplock standard verticale
0
0
Sistema di impalcature Cuplock End del libro mastro
Sistema di impalcature Cuplock End del libro mastro
Trattamento superficiale: materiale nero: acciaio al carbonio Q235 Standrad: standard BS
0
0
Cuplock Forged Top Cup
Cuplock Forged Top Cup
0
0
Tazza di fondo con impalcature di cuplock
Tazza di fondo con impalcature di cuplock
0
0
Galvanizzato con impianto di lecidatura orizzontale
Galvanizzato con impianto di lecidatura orizzontale
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema di scaffolding galvanizzato Standard Vertical
Sistema di scaffolding galvanizzato Standard Vertical
Cuplok impalcatura Standard Vertical 1) Materiale: Q345 2) Dimensione del tubo: 48.3x3,2 mm 3) Spigot o spigotless sono disponibili 4) Trattamento superficiale: HDG 5) Cupt INTERVALITTI: 500 mm Intervalli 6) Lunghezza: 0,5m - 3,0 m DISPONIBILE 7) Marcatura: Marcatura personalizzata su merci 8) standard: BS1139, EN74
0
0
Sistema di impalcature Cuplock Galvanizzato Galvanizzato dipinto orizzontale
Sistema di impalcature Cuplock Galvanizzato Galvanizzato dipinto orizzontale
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema di impalcature per cuplock di HDG verticale da 2,3 m
Sistema di impalcature per cuplock di HDG verticale da 2,3 m
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
Ledger HDG con impalcature Cuplock
Ledger HDG con impalcature Cuplock
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
Sistema di impalcature Cuplock HDG Impuntamento
Sistema di impalcature Cuplock HDG Impuntamento
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
Trabattello Cuplock HDG Zincato Standard Verticale
Trabattello Cuplock HDG Zincato Standard Verticale
Ponteggio HDG zincato Cuplock verticale standard
1) Materiale: Q345
2) Dimensione del tubo: 48,3x3,2 mm
3) Sono disponibili Spigot o Spigotless
4) Trattamento superficiale: HDG
5) Intervalli dei giunti a tazza: intervalli di 500 mm
6) Lunghezza: 0,5 m - 3,0 m disponibili
7) Marcatura: Marcature personalizzate sulle merci
8) Standard: BS1139, EN74
0
0
1200 mm HDG CUPLOCK Sistema di impalcatura Ledger
1200 mm HDG CUPLOCK Sistema di impalcatura Ledger
Specifiche: 48.3*3.0mm o come te
Trattamento superficiale: rivestimento nero, a caldo-galvanizzato, dipinto
Materiale: acciaio al carbonio Q235
Contrassegna: BS1139 / EN74 o come te
Standrad: standard BS
0
0
Lect del sistema di impalcatura da cuplock zincato da 900 mm
Lect del sistema di impalcatura da cuplock zincato da 900 mm
1) Specifica: 48.3*3.0mm o come te
2) Trattamento di superficie: rivestimento nero, a caldo-galvanizzato, dipinto, in polvere
3) Materiale: acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o As You
4) Standrad: standard BS
0
0
Sistema di rinforzo con impalcature galvanizzata
Sistema di rinforzo con impalcature galvanizzata
Ledger HDG Ledger Cuplock Sistema di impalcatura 1) Materiale: Q235 2) Dimensione del tubo: 48.3x3,0mm 3) Lunghezza: 900 mm (dimensione disponibile 0,6-2,5 m) 4) Utilizzo: Sistema Cuplock Tracing Ledger 4) Peso: 3,5kg 5) Elaborazione: calda calda galvanizzata
0
0
HDG Cuplock Sistema di impalcatura Ledger Vertical
HDG Cuplock Sistema di impalcatura Ledger Vertical
Specifiche: 48.3*3,2 mm o come trattamento superficiale: nero, hot-dip-galvanizzato, dipinto, di rivestimento in polvere Materiale: Carbon Acciaio Q235 Marcatura: BS1139 / EN74 o As Standrad: BS Standard
0
0
Lama forgiata di libro mastro
Lama forgiata di libro mastro
0
0
Standard di sistema di impalcature Cuplock HDG da 2,0 m
Standard di sistema di impalcature Cuplock HDG da 2,0 m
1) Specifica: 48.3*3,2 mm o come te
2) Trattamento di superficie: rivestimento nero, a caldo-galvanizzato, dipinto, in polvere
3) Materiale: acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o As You
4) Standrad: standard BS
0
0
1,2m Cuplock Sistema di impalcature HDG Ledger
1,2m Cuplock Sistema di impalcature HDG Ledger
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema di impalcature di cuplock zincato 0,6 m orizzontale
Sistema di impalcature di cuplock zincato 0,6 m orizzontale
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema di impalcature da 0,9 m Ledger galvanizzato
Sistema di impalcature da 0,9 m Ledger galvanizzato
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema di impalcature da 0,9 m HDG Sistema HDG
Sistema di impalcature da 0,9 m HDG Sistema HDG
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Sistema orizzontale con impalcatura zincata zincato 0,9 m
Sistema orizzontale con impalcatura zincata zincato 0,9 m
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0
Cuplock Sistema di impalcature Condica orizzontale
Cuplock Sistema di impalcature Condica orizzontale
Modello: Cuplock Standard Brand: Codice EK: EK-Cl-1 Dimensione del tubo: 48,3*3,2 mm o come materiale: Q235 Trattamento superficiale: Peso placcato zinco: secondo le specifiche necessarie
0
0
Sistema di impalcature Cuplock da 0,6 m Ledger HDG
Sistema di impalcature Cuplock da 0,6 m Ledger HDG
Specifiche: 48.3*3,0 mm o come trattamento di superficie: nero, hot-dip-galvanizzato, dipinto, rivestimento in polvere Materiale: Acciaio al carbonio Q235 Contrassegna: BS1139 / EN74 o come standrad: BS Standard
0
0

Ispezione del sistema EK Cuplock



EK Scaffolding's professional QC will make detailed measurements based on the drawings confirmed with customers after scaffold cuplock products come out, so as to ensure that the size of cuplock scaffolding products meets customer requirements.

EK Cuplock Scaffolding Inspection

Test di installazione delle impalcature EK Cuplock



EK Scaffolding - Before cuplock product packaging, professional quality inspection personnel will randomly extract components of Cuplock Scaffolding system from the products purchased by customers for installation and testing, so as to check whether the product can be used normally.





Sistema di impalcature Cuplock
Test di installazione delle impalcature EK Cuplock
Sistema di impalcature Cuplock
Test di installazione delle impalcature EK Cuplock
Sistema di impalcature Cuplock
Test di installazione delle impalcature EK Cuplock
Sistema di impalcature Cuplock
Test di installazione delle impalcature EK Cuplock
cuplock scaffolding catalogue

Cuplock Scaffolding Catalogue

Here is catalogue of EK cuplock scaffolding system. You can see all our diagonal brace, ledger and standard products here.

If you feel that cuplock scaffold catalogue cannot satisfy you, we also have files to download.

Projects of Cuplock Scaffolding System

The versatility and wide range of cuplock makes it an ideal system for almost any situation. From the simple residential building project to the most complex
access and support structures, it can follow curves and complex contours and is also suitable for many industrial maintenance situations.

cuplock for curved structuers

Cuplock for Curved Structures

Cuplock Scaffolding System is ability to allow ledgers / horizontals to lock into the standards / verticals from any angle. Because of variable Cuplock System sizes curved structures using can be easily and well realized.

cuplock for support structures

Cuplock for Support Structures

Cuplock Scaffolding System is widely used to create scaffolding support structures. Outrigger load carrying capacity of this cuplock system is very high. And the range of components allows the system to respond virtually and support applications.

Cuplock Fro Scale Torri

Cuplock for Staircase Towers

The Cuplock Staircase tower incorporates special staircase components in the traditional Cuplock tower to create a safe, user-friendly access solution and is quick and easy to install.

Prodotti correlati

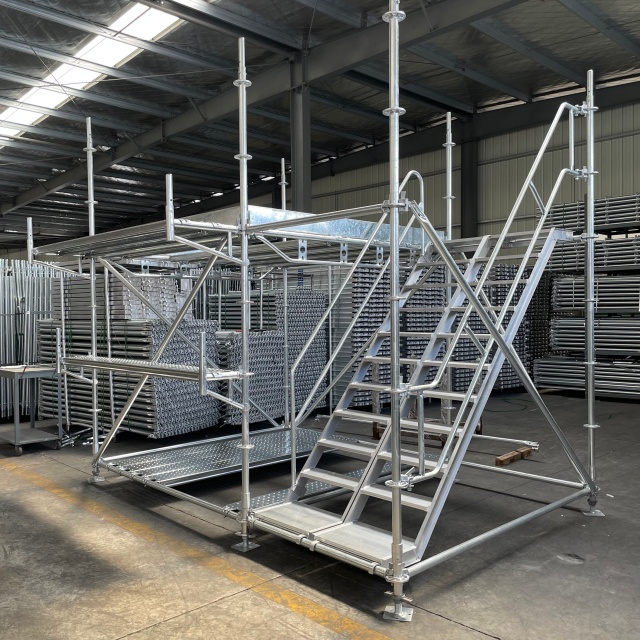

Ringlock Scaffolding System
Ringlock Scaffolding System

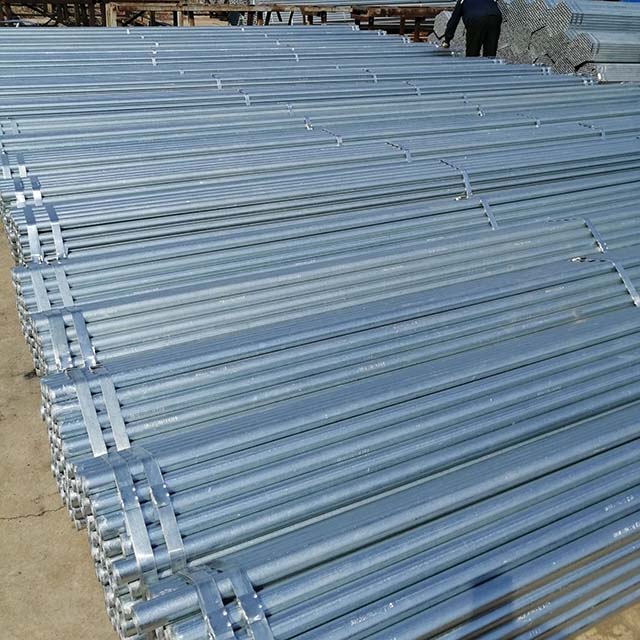

Scaffolding Pipe
Scaffolding Pipe
Frame Scaffolding System
Frame Scaffolding System

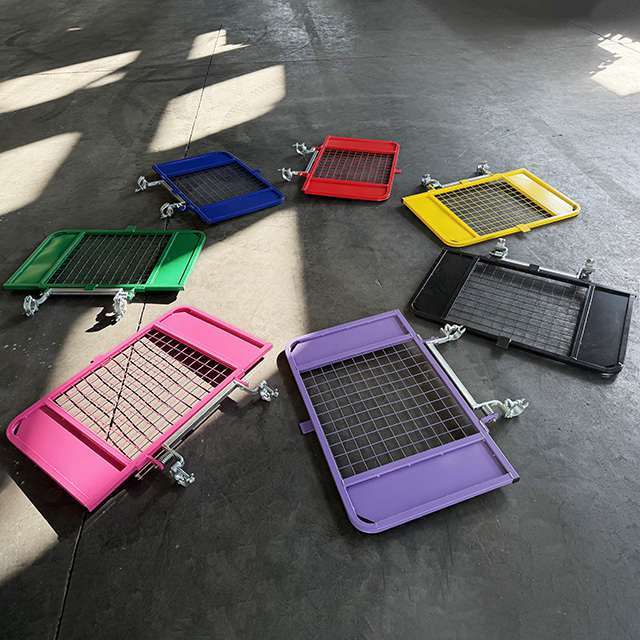

Scaffolding Gate
Scaffolding Gate

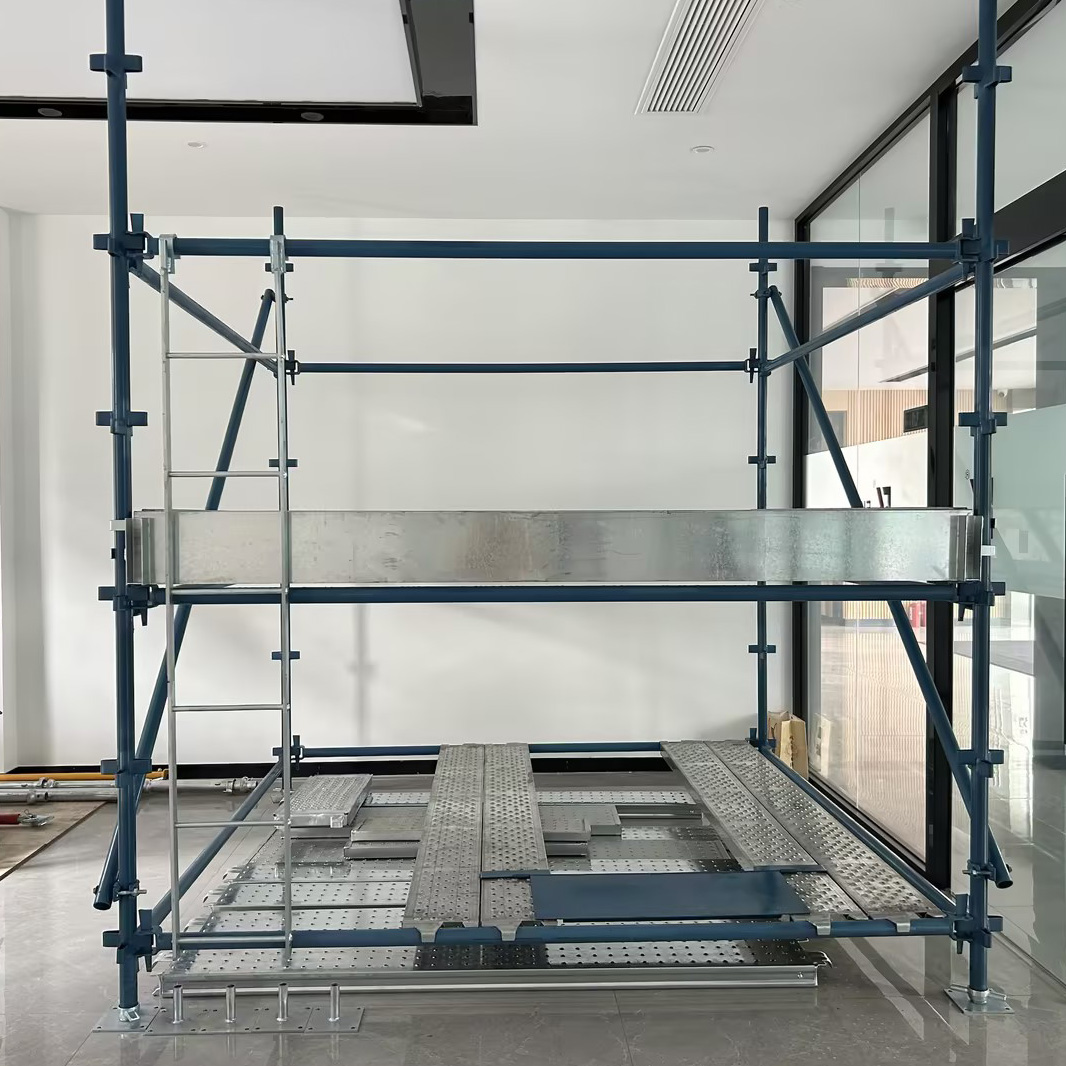

Kwikstage Scaffolding System
Kwikstage Scaffolding System

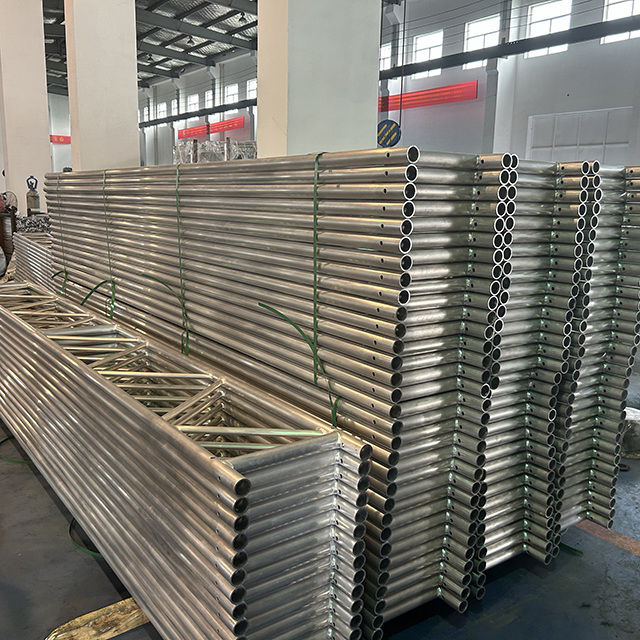

aluminum beam
Aluminum Beam

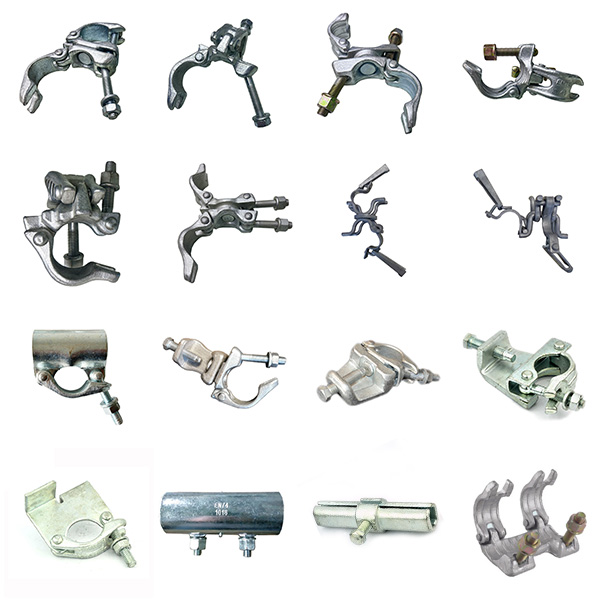

Scaffolding Coupler
Scaffolding Coupler
pallet
Pallet

Cuplock Scaffolding Blog

Altro >>
Lascia un messaggio
Modulo online
Allega file
    Mettiti in contatto

    86-25-5712 3616

    0086-18606192990

    kevin@eksca.com

    Accedi al | registro

    Produttore di impalcature

    Impalcatura EK

    Certificati
    Contattaci
    Allega file

      Copyright © 2016 - 2026 EK Metalwork Co., Ltd. Tutti i diritti riservati.
